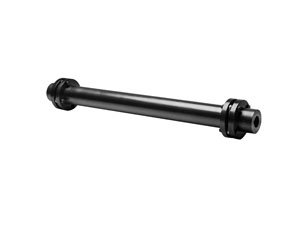

Long Span coupling (Carbon Fiber Tube)
* Using keyway or locking assemblies connect, spring plates coupling.
* Zero backlash.
* Excellent response and high torque capacityldentical clockwise and anticlockwise rotational characteristics.
* Stainless steel spring plates absorb parallel, angular misalignments and shaft end-play.
* Using in long span drive.
* Light weight,good toughness,low noise and vibration.

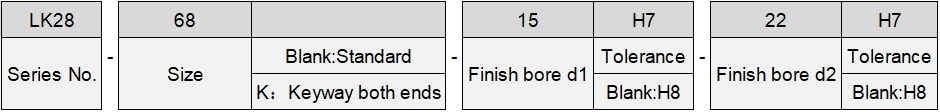

Ordering Information

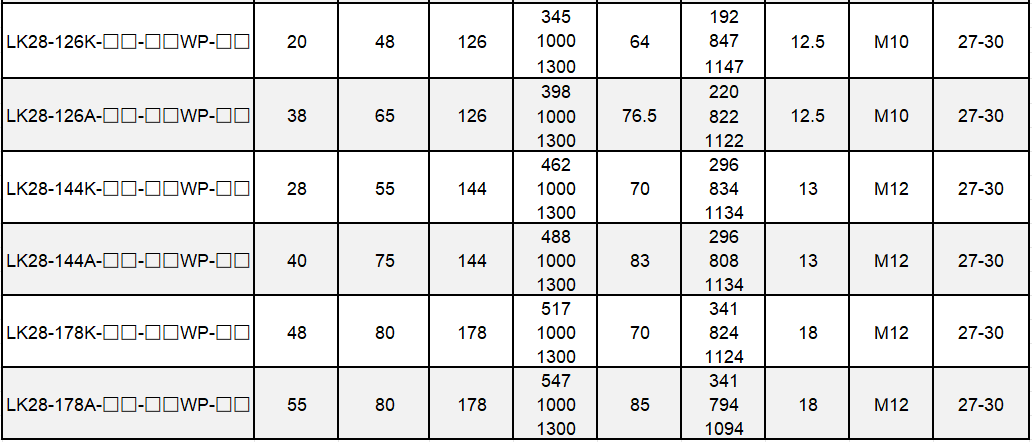

Dimensions(mm)

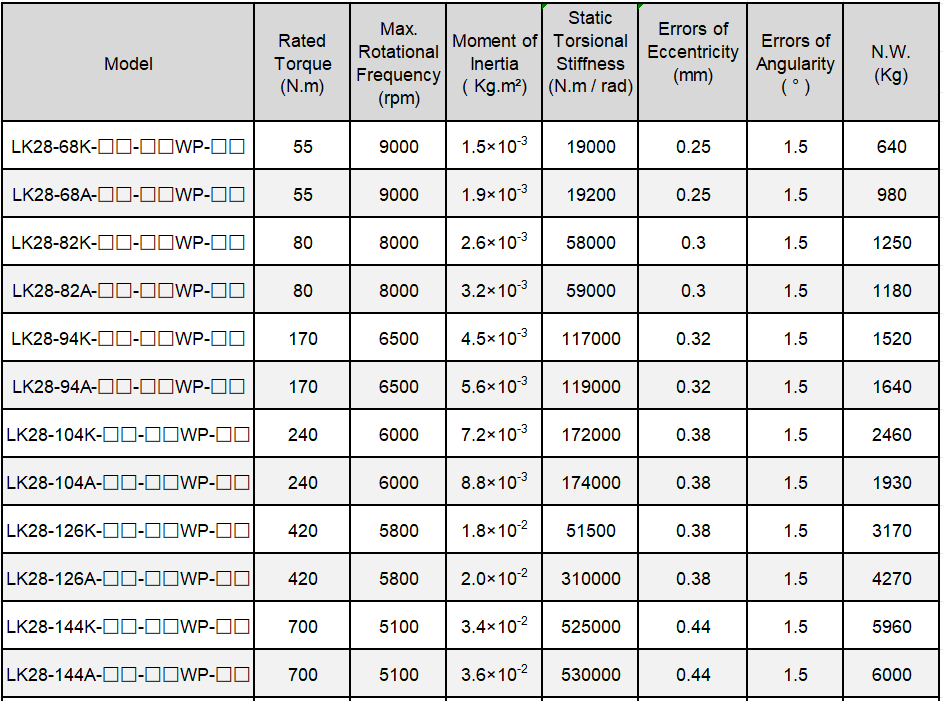

Specifications(mm)
Downloads
Here you will find order examples and operating instructions for download in PDF format.
LK28 Long Span Disc Coupling (Carbon Fiber Tube).pdf
Other Long Span Coupling
|
|
